Mechanical Overclamp Assemblies

"Spider" - Vertical Overclamp

Rail Version Features:

  • Fully adjustable rails
  • Clamp on accessories available
  • Push fingers
  • Easily accepts Opens Xpress, TestJet and Framescan
  • Switch pushers available
  • Linear motion - no wiping action
  • Low cost
  • Light weight
  • Full Access to unit-under-test (uut)
  • Low maintenance

TSA Plate Version Features:

  • G-10 pressure plate for mounting of top-side probes, switch pushers, etc. along with pressure fingers.
  • Easily accepts Opens Xpress, TestJet and Framescan
  • Guide Pin and bearings provided for precise alignment of top-side plate to probe plate
  • Low cost
  • Low maintenance

Part Number Description
200-VOC1620 Vertical Overclamp Assembly Kit.  Includes 4 cross bars and 28 pressure fingers

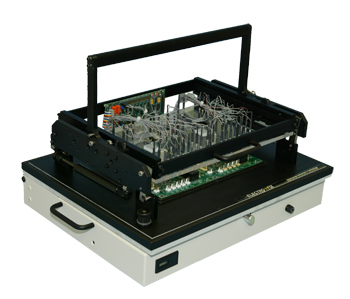

200-VOC1620-TSA Vertical overclamp assembly with top side access plate.
