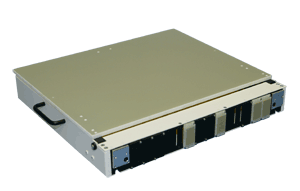

301 Series

Universal (GR2270 / GR2271) Fixture Kits

Features:

  • Rigid fine-grain G10 plates for flatness, strength and stability.
  • Tooling holes for accurate drilling
  • One-piece lightweight pan

Options:

  • Full customization available
  • Anti-static material
  • Complete line of contact and probe blocks
  • Mechanical and vacuum actuated fixture kits available
  • Receivers / Adapters to suit all of your needs are available

Part Number Outside Dimensions Maximum Product
  A B C D
301-1216 12 (305) 16 (406) 8 (203) 12 (305)
301-1620 16 (406) 20 (508) 12 (305) 16 (406)
301-1620/5 (5" deep pan assy.) 16 (406) 20 (508) 12 (305) 16 (406)
301-2024 20 (508) 24 (610) 16 (406) 20 (508)
301-1620DW * 16 (406) 20 (508) 12 (305) 6 (152)
301-2024DW * 20 (508) 24 (610) 16 (406) 8 (203)
301-1216BT 12 (305) 16 (406) 12 (305) 16 (406)
301-1620BT 16 (406) 20 (508) 16 (406) 20 (508)
301-1620BT/5 (5" deep pan assy.) 16 (406) 20 (508) 16 (406) 20 (508)
302-2024 20 (508) 24 (610) 20 (508) 24 (610)
*DW denotes dual well.  Accommodates two product
